Wellhead Equipment

to provide a complete SRP system, WTS is dealing with MOSTOIL company to provide the SRP wellhead equipment. Products manufactured at MOST conform to strict standards of ISO 9001-2008, API Q1, CSA , and UL/ULC.

STUFFING BOXES

Classic Single

  • Dependable performance
  • Utilizes cone packing
  • Rated up to 1500 psi
  • Standard model has the lubricating upper gland
  • Options available for lubrication reservoir glands and leak protection
  • Available in standard threaded connections
  • Available to fit standard rod sizes
  • Flanged bottom connection available

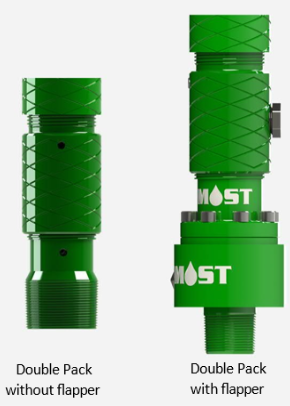

Classic Double

  • Most widely used and recognized stuffing box in the industry
  • Dependable performance
  • Utilizes cone packing
  • Rated up to 1500 psi
  • Upper packing can be changed under pressure by engaging lower packing
  • Standard model has the lubricating upper gland
  • Options available for lubrication reservoir glands and leak detection
  • Available in standard threaded connections
  • Available to fit standard rod sizes
  • Flanged bottom connection available

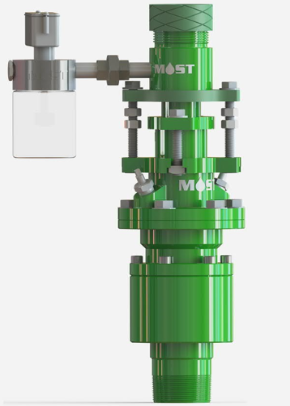

Pollution Control Stuffing Boxes

  • Fully optioned HPI or Classic series stuffing boxes with leak detection and flapper valve
  • Available in standard threaded connections
  • Available to fix standard rod sizes
  • Flanged bottom connection available

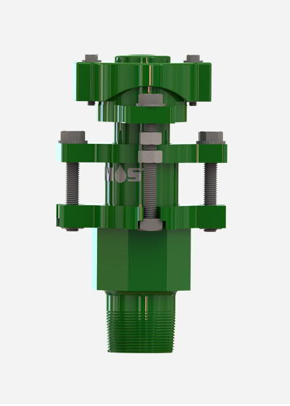

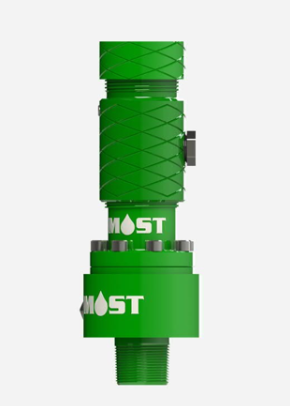

Modular Stuffing Box

  • Modular design: single pack, double pack, triple pack, and quad pack
  • 3000 psi or 5000 psi static rated
  • NACE compliant
  • With or without flapper or float ball
  • Available as pin base or API 6A flange
  • Designed to minimize height
  • Available for 1-1/4" or 1-1/2" rod

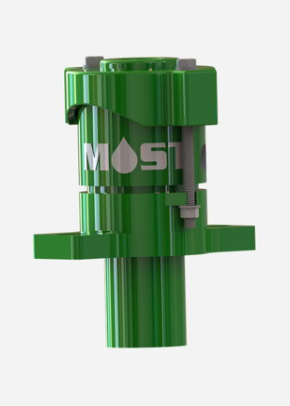

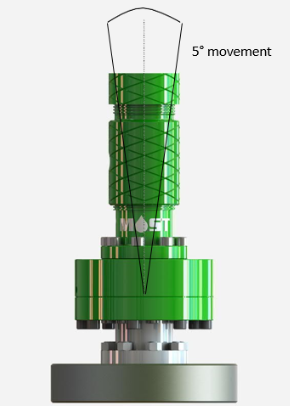

Pivoting Stuffing Box

  • Up to 5 degrees of misalignment
  • Up to 5000 psi static
  • Available with or without flapper
  • Available in all common pin and flange sizes
  • Rod sizes: 1-1/4" or 1-1/2" rod
  • High Temp option for temperatures up to 300°C

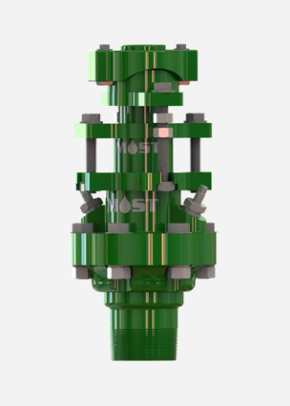

High Pressure Stuffing Box

  • 3000 psi or 5000 psi static rated
  • NACE compliant
  • With or without flapper or float ball
  • Available as pin base or API 6A flange
  • Designed to minimize height

STUFFING BOXES ACCESSORIES

Leak Detection for Classic Style Stuffing Boxes

  • Low cost alternative
  • Installs into top gland

Classic Lubricating Gland

  • Comes standard on Classic Single Pack and Classic Double Pack stuffing boxes
  • Zerk fitting for greasing
  • Extends packing life
  • Suitable for all polished rod sizes

Rod Lubricator

  • External lubricator for pump jack systems
  • Extends packing life
  • Works with any style of stuffing box
  • Available for all published rod sizes

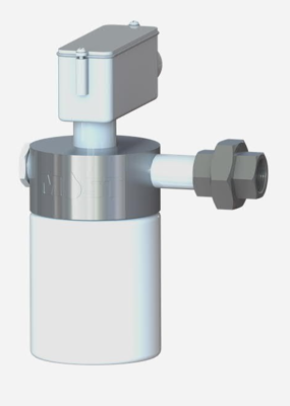

Anti-Pollution Sensor for Leak Detection

  • Float style leak detector
  • 3/4" NPT connection
  • Optional plastic, glass, or stainless vessel
  • Available standard or explosion proof
  • RoHS Compliant
  • Prevents spills due to stuffing box leakage. Capture the leak and shut down the system before it becomes a spill.

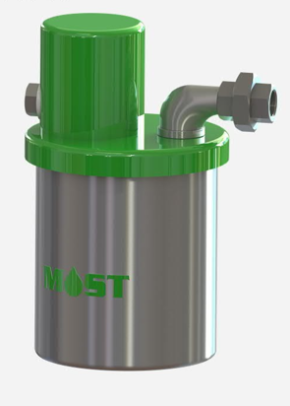

Anti-Pollution Sensor for Leak Detection

  • Weight style leak detector
  • 3/4" NPT connection
  • Stainless vessel
  • Available standard or explosion proof

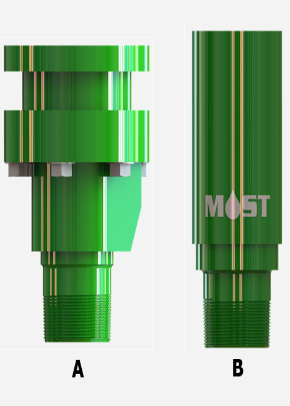

Add-on Flapper

  • A) For Classic
  • Flapper closes if polished rod breaks
  • Replaces bottom section of Classic Single or Classic Double Pack stuffing boxes
  • B) Pin by Box
  • Add a flapper for spill mitigation to any pin style stuffing box
  • Available in common sizes

BOPs & Flow Tees
